Specifications

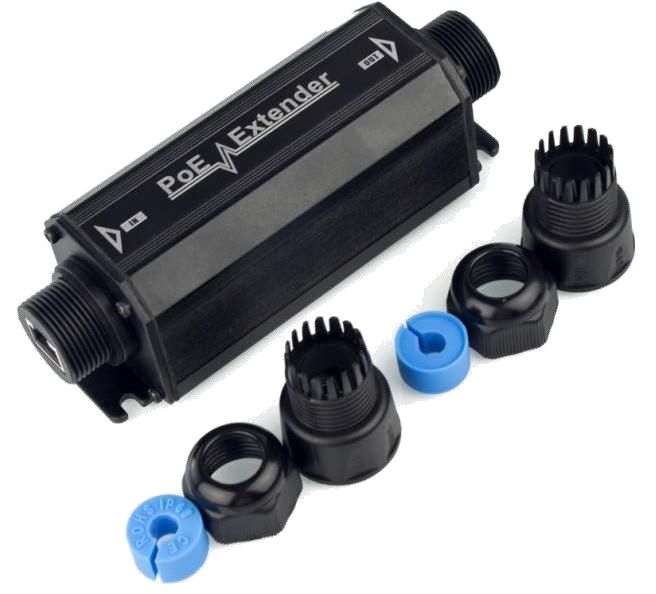

Model Number PBPE-G11-O
No. of channel 1 PoE IN into 1 PoE OUT
Pass Through Data Rate 10/100/1000 Mbps half/full duplex
POE input Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)
POE Output Pin Assignment and Polarity: 1/2 (+), 3/6 (-); Output Power: up to 22W
Connector Shielded RJ-45, EIA 568A and 568B
Network cable Outdoor type Shielded cat5e (or higher）
Dimension 185 x 45 x 45mm
Mounting Wall of shelf
Environment Indoor or outdoor
Environmental Condition Operating Ambient Temperature: -25 to 55℃
Regulatory Compliance IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
