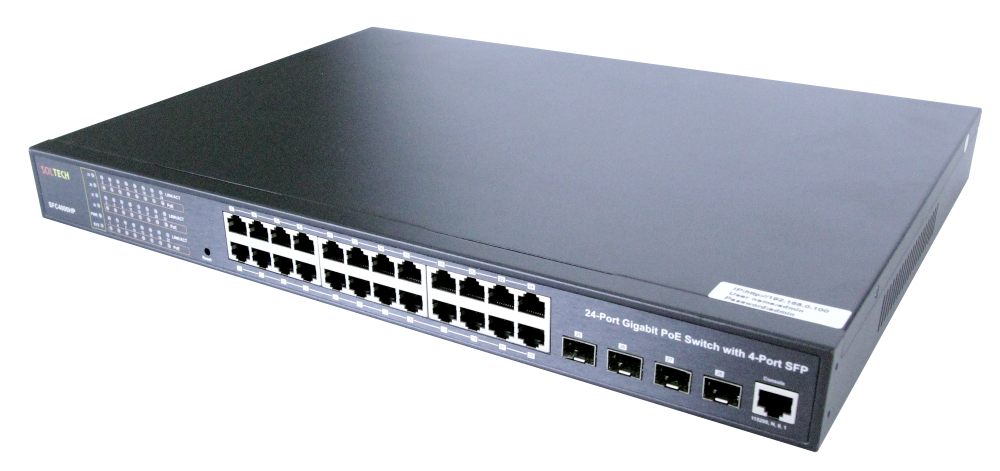

SFC4000HP-V3

SFC4000HP-V3

PoE 10/100/1000Mbps TP 24-Ports + SFP 4-Slots (Combo Port : 23,24)

  • 802.3at PoE 30.8W (Max. 380W)
  • 10/100/1000Mbps TP 26-Ports (Combo Port:23,24)
  • Web based Management, SNMP Management
  • IGMP Snooping
  • 24-Ports (PoE 802.3at) + SFP 4-Slots L2 Management Optical Hub
  • IEEE 802.1p QoS, VoIP QoS
  • IEEE802.3at Power over Ethernet / PSE
  • Port Mirroring for Analysis of Network Errors and Traffics
  • Network Security Optimization by IEEE 802.1 Q-in-Q
  • IEEE 802.1x User Authentication for Network Security
  • IEEE 802.1d & IEEE 802.1w Rapid Spanning Tree
PDF Get Inquiry

Specifications

Technology Standard IEEE 802.3 10Base-T IEEE 802.3z Gigabit SX/LX IEEE 802.1d Spanning tree protocol IEEE 802.1s Multiple spanning tree protocol IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3ab Gigabit 1000T IEEE 802.1w Rapid Spanning tree protocol IEEE 802.1p Class of Service IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Etherent

Interface RJ45 Ports PoE 10/100/1000Mbps TP 24-Port(Combo Port: 23,24), Auto-Negotiation, Auto MDI-X Fiber Ports SFP 4-Slots(Combo Port : 23,24) 1000Mbps-SX/LX SFP, 100Mbps-FX SFP, Speed auto detection LED Indicators System : Power Ports : 10/100/1000Mbps Link/Act, PoE In-Use, SFP Link

Performance Back Plane Switch Fabric 52Gbps, 8K MAC Address table, Jumbo Frame 9.6Kbytes PoE PoE Power Budget: Max. 380Watt Number of PD@7Watt / 24Port Number of PD@15.4Watt / 24Port Number of PD@30.8Watt / 12Port

Operating Environment Temperature Operation: 0°C ~ 60°C, Storage: -20℃ ~ 80℃ Humidity 5 ~ 95% (Non-condensing)

Input Voltage 100~240VAC, 50/60Hz

Dimension 440mm(W) x 300mm(D) x 44mm(H
